AD FS konfigurering til Acubiz SSO

Introduktion

Nærværende dokument beskriver konfigurationen af Acubiz EMS som en Relying Party Trust i Microsoft Active Directory Federation Services (AD FS). Opsætningen sikrer, at virksomhedens brugere kan tilgå Acubiz EMS via Single Sign-On (SSO).

Indhold i denne artikel:

• 1. Fremsendelse af Federation Metadata til Acubiz
• 2. Configuration of Acubiz EMS as Relying Party Trust
• 3. Test the SSO connection

1. Fremsendelse af Federation Metadata til Acubiz

Først skal virksomhedens FederationMetadata.xml-fil eller tilhørende URL fremsendes til Acubiz Support.

Fremgangsmåde for udtræk af Federation Metadata:

1. Åbn en browser og hent filen FederationMetadata.xml direkte fra virksomhedens AD FS-platform.

   URL-struktur:

   https://adfs.[virksomhedsdomæne].com/federationmetadata/2007-06/federationmetadata.xml

2. Fejlfinding ved manglende adgang:

   Hvis metadatafilen ikke kan tilgås, skal du kontrollere, at Metadata endpoint er aktiveret i AD FS:

   • Åbn AD FS Management.

   • Naviger til AD FS > Service > Endpoints.

   • Find sektionen Metadata og bekræft, at endpointet står som Enabled.

Bemærk: I stedet for manuelt at sende XML-filen kan du fremsende det direkte link (URL) til filen, forudsat at denne er offentligt tilgængelig.

2. Configuration of Acubiz EMS as Relying Party Trust

General configuration

1. Open AD FS Management à Add Relying Party Trust

   Click the [Start]-button in the window

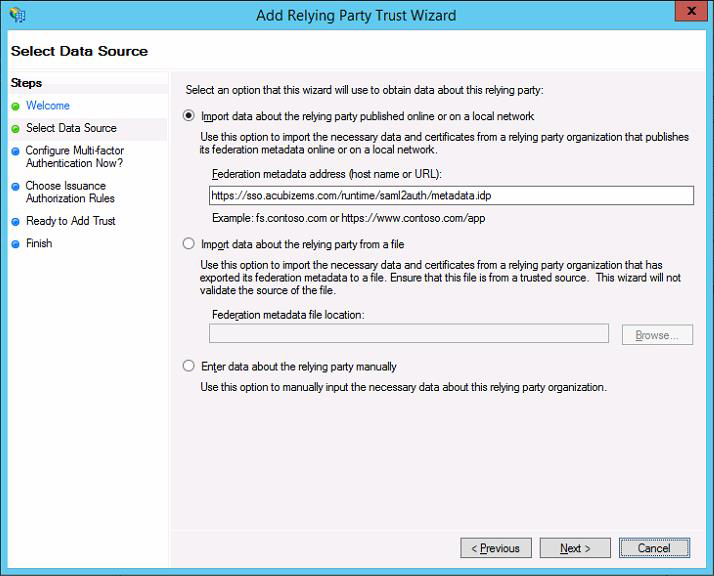

2. Select “Import data about the relying party published online or on local network” and
   insert the following URL in the address field:

   https://auth.acubiz.com/federationmetadata/2007-06/federationmetadata.xml


   Click the [Next]-button

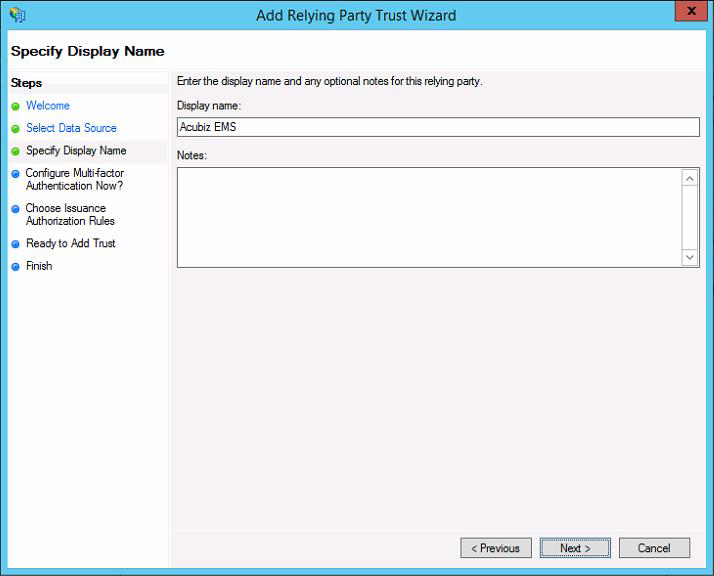

3. Enter ”Acubiz” as Display name

   Click the [Next]-button

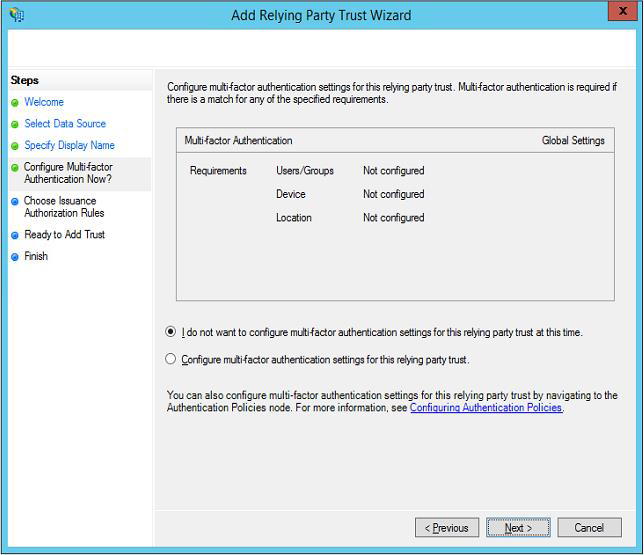

4. Check that “I do not want to configure…” is selected:

   Click the [Next]-button

5. Check that “Permit all users to access this relying party” is selected:

   Click the [Next]-button
   Should you wish to limit access to Acubiz EMS for specific users, then this can later be
   configured in the Claim Rule view under ”Issuance Authorization Rules”.

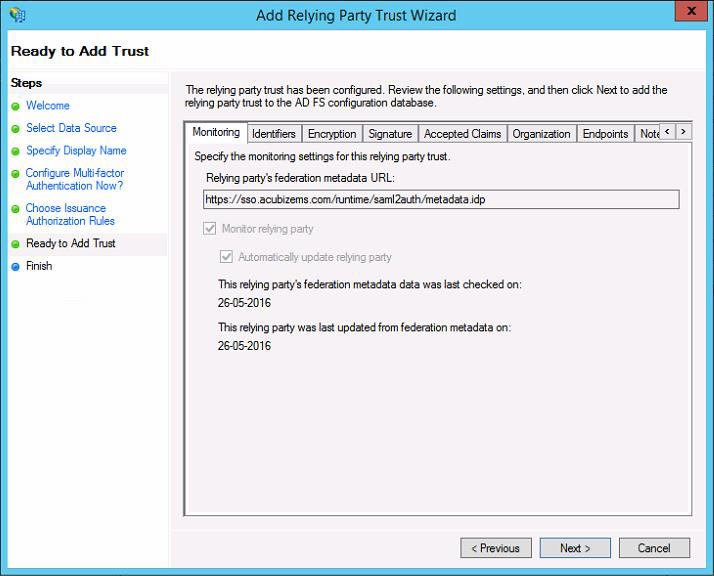

   Click the [Next]-button

   Click the [Close]-button

Configuration of Claim Rules

This section describes the Claim Rules required to connect to Acubiz:

Click the [Add Rule…]-button

Set up AD Attributes

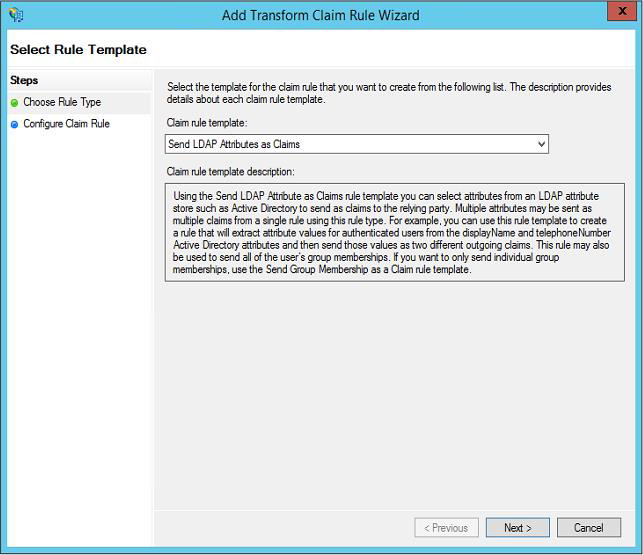

Select ”Send LDAP Attributes as Claims”:

Click the [Next]-button.

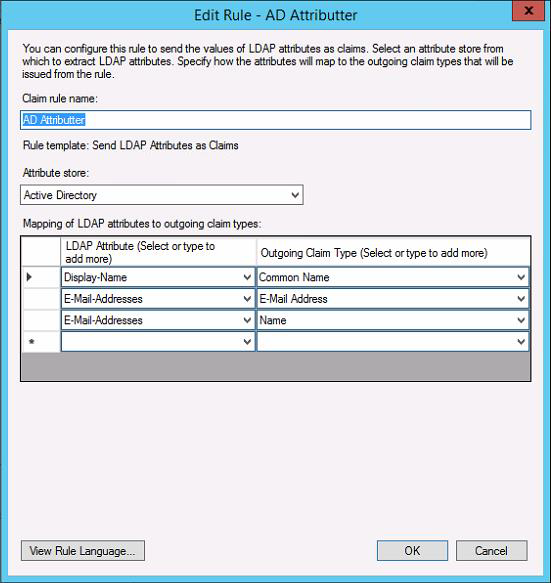

Configure LDAP attributes

Configure the LDAP Attribute store to send Claim Types as follows:


The Claim type “name” is required and must contain the User email address!

Click the [OK]-button

3. Test the SSO connection

Now Test of SSO connection to Acubiz
